Getting Started with autoMaps#

Work through this tutorial to get your feets wet with autoMaps.

For further details on using autoMaps, please refer to the User Guide.

Installation#

Warning

Only tested on Ubuntu 20.04! Installation on Windows is experimental.

Follow the Installation instructions in the User Guide.

Creating a demo project#

To get a feeling for the functionality and configuration of autoMaps you should first create a demo project.

On the command line, cd into a directory where you want to place the demo project. Then run the following command:

automaps init-demo

Then start the demo app by running the following command:

automaps run dev -c ./automaps-demo/automapsconf.py

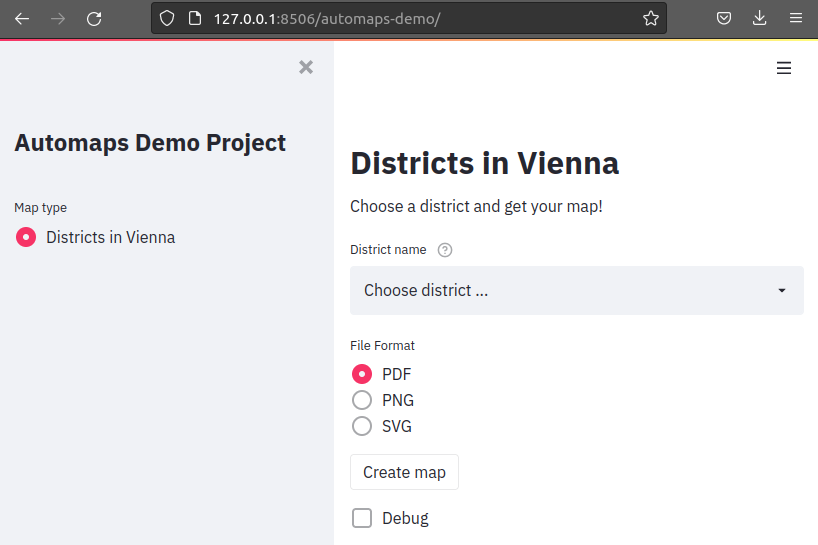

Open up http://127.0.0.1:8506/automaps-demo/ in your browser, and you'll see the frontend of the demo project being displayed: Demo Frontend

Choose a district and a file format, click on Create map and then on Download to get your first automatically generated map.

Tip

If you encounter problems running the demo app, this might be because of a wrong setting in automaps-demo/automapsconf.py. Try to change the option QGIS_INSTALLATION_PATH to the correct path for your system. The path can be determined by opening up the QGIS GUI and running QgsApplication.prefixPath() in the Python console.

Exploring the demo project#

The demo project consists of the following files:

Demo Files

Geodata (demo_data.gpkg, demo_project.qgz)#

Let's take a look at the geodata first. It is stored in the GeoPackage demo_data.gpkg and used in the QGIS project demo_project.qgz. Open the qgz file with QGIS and explore it. You'll discover, that it consists of only a few main elements.

It has two layers:

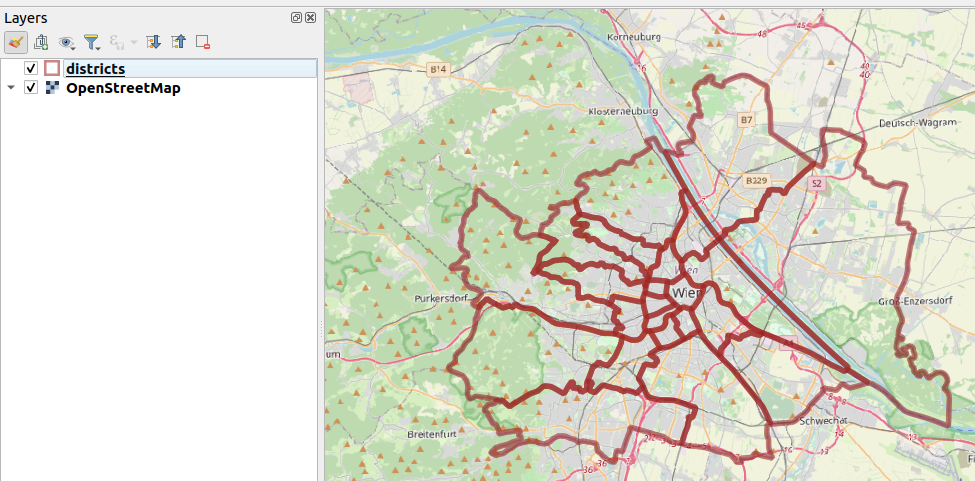

Demo layers

  • districts: a polygon layer holding the geometries and some attributes of the 23 districts of Vienna, Austria. The attribute NAMEK is used to provide the options for the frontend's drop down menu called District name. During the map creation process, the districts layer is filtered to only show the selected district.
  • OpenStreetMap: used as basemap.

The project also consists of a print layout called poly, which has three elements:

Demo print layout

  • The main map, called Map 1. During the map creation process, the map view is updated to zoom to the selected district.
  • A label with the content [% map_get(@data, 'District name') %]. During the map creation process, it is updated to hold the selected value of the drop down menu called District name.
  • Another label holding the data source information. This is just some static text.

The streamlit configuration (./streamlit/config.toml)#

autoMaps uses Streamlit as its frontend. Streamlit can be configured using the config.toml file, as described in the docs. In the case of our demo project, it looks like this:

[server]
port = 8506
baseUrlPath = "automaps-demo"

The main configuration (automapsconf.py, automapsconf_poly.py, db.py)#

The main configuration is defined in a Python file, which typically is called automapsconf.py and located in the same directory as app.py. For the demo project this configuration is split into three files, two of them imported into the main file automapsconf.py. This helps to keep everything clearly arranged and to store database credentials in a dedicated file, which can be kept locally in version control scenarios (e.g. by gitignoring it). This structure is recommended as best practice for your own projects. For more information take a look at the User Guide.

automapsconf.py requires some mandatory config options and supports a list of optional config options. At this point, we will focus only on two of them, db and MAPTYPES_AVAIL:

The configuration option db is necessary to connect to your project's (geo)database and thus to present the available options in the frontend (like the values of the drop down menu District name). It has to be a dictionary which can be converted into an SQLAlchemy URL object. For the demo project, only drivername and database are set to point to the SQLite database which is part of the geopackage demo_data.gpkg:

db = {
    "drivername": "sqlite",
    "database": "demo_data.gpkg"
}

The configuration option MAPTYPES_AVAIL is a list of MapType objects:

MAPTYPES_AVAIL = [maptype_poly]

MapType objects serve as main autoMaps elements and help to structure your project. Each MapType is tied to one or more QGIS print layouts (which define the looks of the map) as well as to a single MapGenerator (which defines the processing steps). Take a look at the code in automapsconf_poly.py which defines the MapType object maptype_poly and compare it with the UI elements of the demo project's frontend:

import streamlit as st

from automaps.maptype import MapType
from automaps.selector import SelectorSimple, SelectorSQL
from generate_poly import MapGeneratorPoly

maptype_poly = MapType(
    name="Districts in Vienna",
    description="Choose a district and get your map!",
    ui_elements=[
        SelectorSQL(
            "District name",
            """
            select distinct NAMEK
            from districtborder
            order by NAMEK""",
            st.selectbox,
            widget_args={
                "help": "Choose your district!"
            },
            no_value_selected_text="Choose district ...",
        ),

        SelectorSimple(
            "File Format",
            ["PDF", "PNG", "SVG"],
            st.radio,
            exclude_from_filename=True,
            use_for_file_format=True,
        ),
    ],
    print_layout="poly",
    map_generator=MapGeneratorPoly,
)

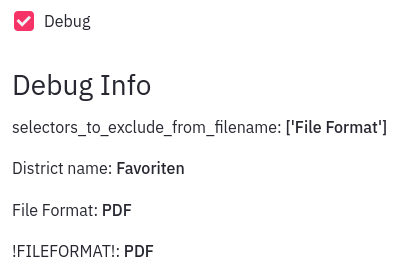

You can see that the main part of the object initialization is the list passed to the ui_elements argument. It holds two Selector objects, which define the available options in the frontend and serve as connection to the backend, passing the selected values as a dictionary called data to the processing machinery. Check the "Debug" box in the frontend to see a representation of the data object:

Demo Debug

The processing configuration (generate_poly.py)#

The data dictionary is consumed by MapGeneratorPoly, a class of type MapGenerator, defined in generate_poly.py:

from collections import OrderedDict

from automaps.generators.base import MapGenerator, Step


class MapGeneratorPoly(MapGenerator):
    name = "Districts in Vienna"

    def _set_steps(self):
        self.steps = OrderedDict(
            {
                "Initialize project": Step(self.init_project, 1),
                "Filter layers": Step(self.filter_layers, 1),
                "Zoom to extent": Step(self.set_extent, 1),
                "Export map": Step(self.export_layout, 5),
            }
        )

    def init_project(self):
        self._init_layers()
        self._set_project_variable(
            "data", self.data
        )
        self._set_map_layer_visibility("districts", True)
        self._set_map_layer_visibility("OpenStreetMap", True)

    def filter_layers(self):
        self._set_map_layer_filter_expression(
                "districts", f"NAMEK = '{self.data['District name']}'"
        )

    def set_extent(self):
        self._zoom_map_to_layer_extent(
            "Map 1", self._get_map_layer("districts")
        )

    def export_layout(self):
        self._export_print_layout()
        self.step_data.project.write("./poly_out.qgz")
        del self.step_data.project

The MapGenerator defines the processing steps which are required to generate the desired map, based on (1) the user selected options (stored in the self.data property), and (2) on the layers, stylings, print layouts etc. in the QGIS project.

Each MapGenerator consists of at least one, but possibly dozens of processing steps. The demo project's MapGeneratorPoly consists of four. They are declared in the _set_steps() method and defined in the other corresponding methods. How to structure your MapGenerator depends on your use case. Just take notice, that the progress of a processing task is visualized in the frontend as a progress bar. You can call your methods however you want.

So what happens here?

  • init_project() initializes all map layers, making them invisible and removing all filter conditions. It copies the self.data dictionary as project variable into the QGIS project and then turns on the required layers.
  • filter_layers() takes the user selected value of the Selector labeled District name (the drop down menu) to set a filter expression for the districts layer.
  • set_extent() zooms Map 1 of our print layout poly to the now filtered extent of the districts layer.
  • export_layout() finally exports the created map in the desired file format (PDF, PNG or SVG). It also writes the specific QGIS project file to the defined location, which can be handy for debugging your own autoMaps projects. Take a look at poly_out.qgz in QGIS, inspect the filter expressions and the poly print layout!

The step methods use various helper methods, inherited from the MapGenerator base class, such as _set_map_layer_visibility() or _export_print_layout(). Take a look at the User Guide for a list of these helper methods. You don't have to use them in your own projects, you could directly go for the respective PyQGIS-calls instead. But they save you a lof of typing for the most common tasks.

After running through all processing steps, the download button shows up on the frontend and the map is ready to be used.

Feel free to play around with the demo project to get better acquainted with the overall structure of an autoMaps project.

For further details on using autoMaps, please refer to the User Guide!

Creating your own project#

You can now go back to the command line and create your first autoMaps project from scratch. Run the following command:

automaps init-project PROJECT_NAME

Replace PROJECT_NAME with the desired name.

This will create a new directory with some stub files as starting point for your own project. Maybe you like to start with editing automapsconf.py which includes some hopefully helpful comments to get you started.
